HS Series Manual Stacker Pallet Truck

Description of Manual Stacker

The HS series manual stacker lifter offers an excellent balance of performance, durability, and value. Engineered for reliability, it features a robust steel construction with reinforced forks, ensuring it can withstand demanding daily use.

Operation is made easy and efficient with a dual-lifting mechanism, including a foot pedal that considerably reduces operator effort. With various models offering capacities from 500kg to 1500kg and an optional adjustable fork, this manual pallet stacker provides the versatility to handle different load sizes. HS series manual stacker is the ideal, cost-effective choice for material handling tasks in workshops, warehouses, and retail environments.

Details of Manual Stacker

  • HS Series manual lift stacker is not only an excellent compromise between price and performance but also a very resistant machine.
  • Reinforced forks, steel pulley and forks precisely driven by rollers, are some of the main features of this manual stacker.
  • The hand pallet stacker is also equipped with a foot pedal to lift forks, which considerably reduces the operator's effort.
  • Option: Adjustable fork (320-870mm)

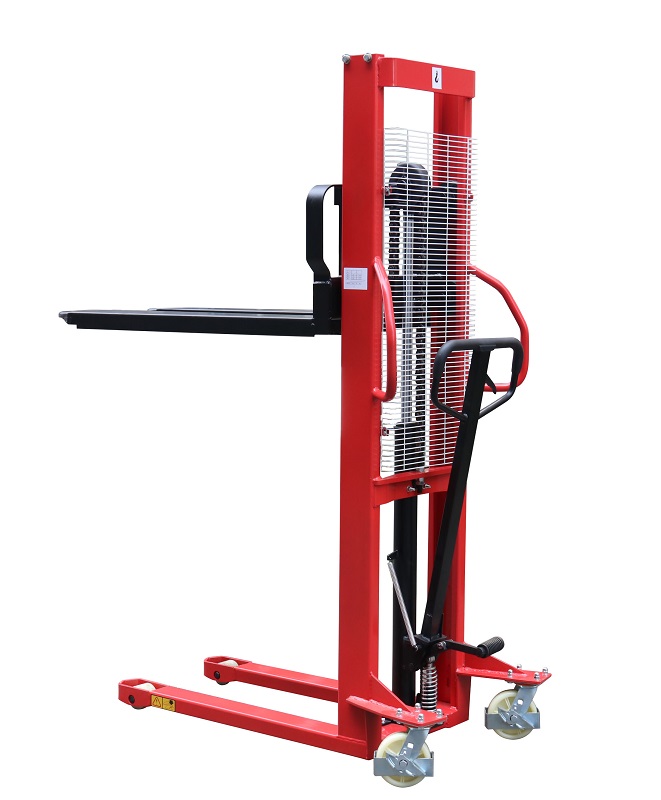

HS1525 Manual Stackermanual stacker truck

HS1525                                                                                   HS1016

Specification of Manual Stacker

i-lift No.15518011551802155180315518041551805155180615518071551808
ModelHS0510HS0516HS1016HS1018HS1025HS1030HS1516HS1525
Capacitykg(lb.)500(1100)1000(2200)1500(3300)
Load Centremm(in.)600(23.6)600(23.6)600(23.6)
Max. Fork Heightmm(in.)1000(40)1600(63)1600(63)1800(70.9)2500(98.4)3000(118.1)1600(63)2500(98.4)
Min. Fork Heightmm(in.)90(3.5)90(3.5)90(3.5)
Fork Lengthmm(in.)1150(45.3)1150(45.3)1150(45.3)
Fork Widthmm(in.)100x48(4x1.9)160x55(6.3x2.2)160x55(6.3x2.2)
Mast Widthmm(in.)430(17)480(19)600(23.6)490(19.3)600(23.6)
Overall Fork widthmm(in.)560(22)560(22)560(22)
Min.Turing Radiusmm(in.)1540(60.6)1590(62.6)1590(62.6)
Steering Wheelmm(in.)150x50(3x2)150x50(3x2)150x50(3x2)
Front Load Rollermm(in.)80x36(3.1x1.4)80x60(3.1x2.4)80x60(3.1x2.4)
Overall size LxWxHmm(in.)1655x640x13801655x640x19701660x700x20051660x790x22101680x780x17601670x780x20201670x700x20851690x870x1760
(65.2x25.2x54.3)(65.2x25.2x77.6)(65.4x27.6x79)(65.4x31.1x87)(66.1x30.7x69.3)(65.7x30.7x79.5)(65.7x27.6x82)(66.5x34.3x69.3)
Net Weightkg(Ib.)126(277.2)140(308)173(380.6)182(400.4)259(569.8)278(611.6)182(400.4)288(633.6)

We have this item in stock in France/US, if you are located in Europe or US, we can arrange delivery to you ASAP! This way will save your time and shipping cost.
